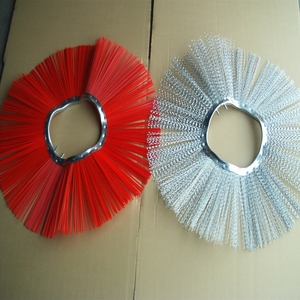

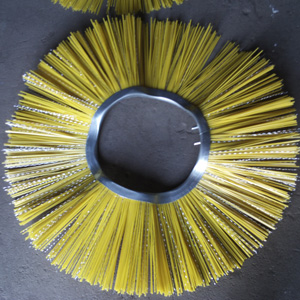

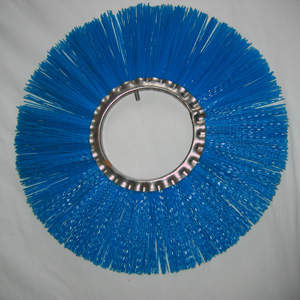

Road Sweeper Brushes

Quality Assurance: Material: 1.Galvanized steel wire ----diameter 0.6mm-0.8mm Manganese steel wire,wear-resistant and not easily broken,never rust. 2.High-strength polypropylene----diameter1.2-2.5mm Tensile strength high.excellent wear resistance 3.Ga

Road Sweeper Brushes is going to equip you a solution as the following:

road sweeper brushes road sweeper brushes
road sweeper brushes road sweeper brushes
Quality Assurance:
Material:
1.Galvanized steel wire ----diameter 0.6mm-0.8mm Manganese steel wire,wear-resistant and  not easily broken,never rust.
2.High-strength polypropylene----diameter1.2-2.5mm Tensile strength high.excellent wear resistance
3.Galvanized steel sheet----Strong and never rust.
Process Structure:
1.The plastic bristles heating fusion;
2.Synchronization injecting solid Viscose,better lock bristles.
3.Hydraulic molding,solid.

Terms of the price:
1.Please specify the product inside diameter,outside diameter,shape,material,pin size.we will give you best price.
2.For example:diameter 10:32 inch Curved,Poly and wire,pin size 6mm×2,FOB SHANGHAI price $6.30USD/PCS.
Terms of the transaction:
1.MOQ:300PCS/ Each species.
2.Terms of Payment:L/C,T/T,
3.FOB port:QINGDAO OR SHANGHAI
4.Delivery deadlines:Prepayments 15 days.
5.Product packaging:Cartons and tray.

About YIHONG services:
1.With independent intellectual property rights fully automatic production line for wafer brush.Daily output of 1000PCS.
2.The factory has passed the ISO9001:2008 quality management system certification.
3.Provide certificate:O.C.,FORM A,FOEM E,FOEM F,FORM M,Invoices and documents certification form Chamber of Commerce or embassy,SGS Etc.
About the size of products:
Inner diameter of the ring is relatively fixed,brush the outside diameter of your requirements can be more production.welcome to give us a call to discuss of other specifications.

Specifications Of Road Sweeper Brush:
NO Inner diameter (mm) Outside diameter (mm) Shape Pin size(mm) Pin spacing(mm) Material
Curved Flat Poly wire Poly and wire
1 76 300-400 N Y 5 Y Y N
2 110 300-400 N Y 5 Y Y N
3 127 380-610 Y Y 6 Y Y Y
4 162 560-660 Y N 8 30 Y Y Y
5 165 500-660 Y Y 6 or 8 Y Y Y
6 178 500-660 Y Y 8 Y Y Y
7 188 560-760 Y Y 8 30 Y Y Y
8 204 610-660 Y N 6 30 Y Y Y
9 220 600-900 Y Y 8 30 Y Y Y
10 254 600-1100 Y Y 6 or 8 30 Y Y Y
11 280 760-915 Y Y 8 Y Y Y
12 300 760-910 N Y 8 30 Y Y Y
13 496 850-1168 Y Y 8 30 Y Y Y

The above dimensions are for reference only, we can customize according to your needs.

More production lines and crustomer case,please click here for more.
