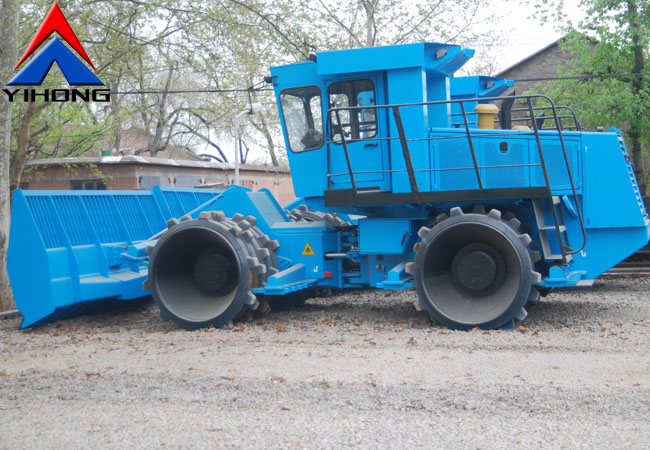

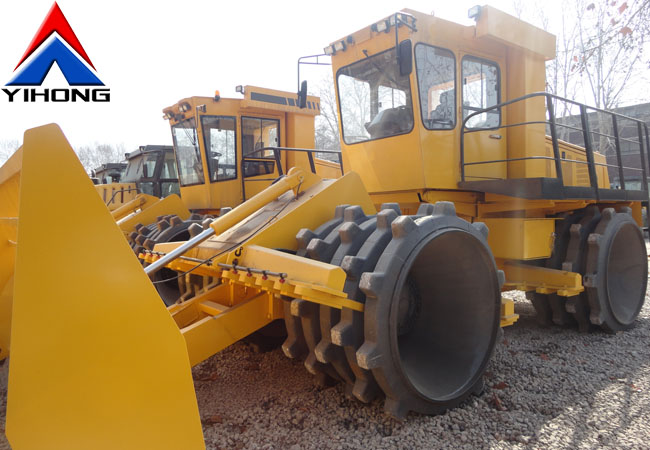

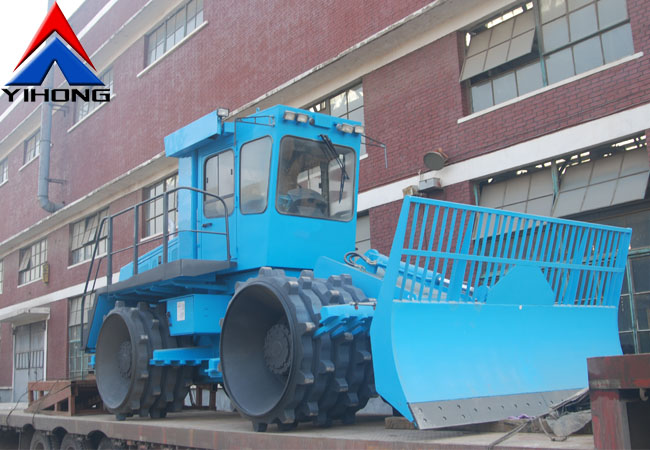

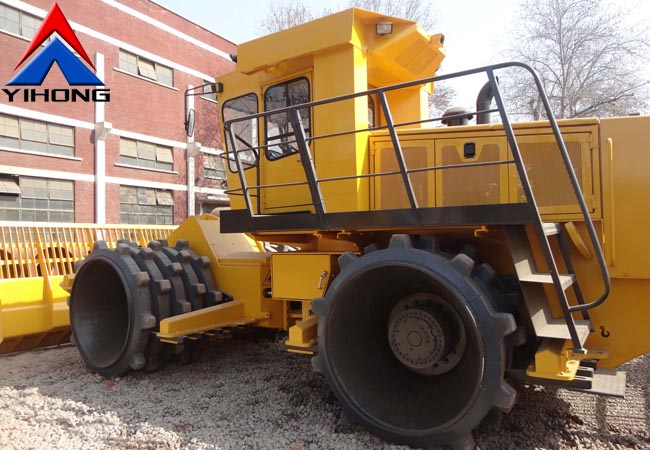

MODEL |
YH223 |
|
Mass |
|
Operating mass |
kg |
23000 |
|
Axle load (front) |
kg |
11000 |
|
Axle load (rear) |
kg |
12000 |
|
Dimensions |
|
Overall length |
mm |
7355 |
|
Overall width at dozer blade |
mm |
3000 |
|
Overall width at front wheel |
mm |
2910 |
|
Overall width at rear wheel |
mm |
2705 |
|
Overall height |
mm |
3590 |
|
Wheelbase |
mm |
3350 |
|
Clearance |
mm |
435 |
|
Compacting wheel |
|
Wheel width |
mm |
1040/835 |
|
Wheel diameter (front / rear, out teeth) |
mm |
1500/1500 |
|
Wheel diameter (front / rear, inner teeth) |
mm |
1200/1200 |
|
Teeth No. per wheel (front / rear) |
50/40 |
|
Drive |
|
Diesel engine manufacture |
SHANGCHAI |
|
Diesel engine model |
D6114ZG |
|
Diesel engine power |
kW |
147 |
|
Diesel engine rated speed |
r/min |
2000 |
|
Electrical system |
V |
24 |
|
Number of driven wheels |
4 |
|
Forward travel speed (1) |
km/h |
0-4.2 |
|
Forward travel speed (2) |
km/h |
0-15.7 |
|
Backward travel speed |
km/h |
0-5.8 |
|
Gradeability |
% |
100 |
|
Dozer blade |
|
Dozer blade height |
mm |
1650 |
|
Dozer blade width |
mm |
3000 |
|
Dozer blade height over ground |
mm |
1000 |
|
Dozer blade depth below ground |
mm |
150 |
|
Brake |
|
Serve brake |
Air-over-oil, caliper disk brakes |
|
Parking/Emergency brake |
Mechanical, expanding hoofed brake |
|
Steering |
|
Steering method |
Hydraulic central articulation with oscillation |
|
Steering angle |
±° |
40 |
|
Oscillating angle |
±° |
15 |
|
Steering radius (outer front wheel) |
mm |
6085 |
|
Capacities |
|
Fuel tank |
L |
450 |
|
Hydraulic oil |
L |
236 |
