Crack Sealing Machine
Applications
:
Used for heating melt sealant or asphalt, mainly used for the crack sealing and pit slot repair operation in the asphalt pavement maintenance.
- With this crack sealing machine, the efficiency has increased 90%. The operation cost has reduced 60%. It quickly preheat and melts the gap-grouting material to the set temperature. Working with the cracking sealing trolley, the operation is convenient and fast, safe and economical. It can operate continually for many people at the same time.
- A. High efficient and Energy-saving
(1)High melting effciency: It takes less than 60 minutes to warm 400L pouring sealant upto 180℃.The continuous melting capacity is more than 1000L/h.
(2)High heat-utilization efficiency: the heating system is equipped with preheating function, adopts the parallel structure of “preheat plus melt”. The hear utilization is much more effective.
(3)Low use cost: rated fuel consumption is less than 5.5L/h, temperature drops less than 10℃ each hour under the heat presevation condition.
B. Convenient and Reliable
(4) Simple control: Digital display of automatic temperature control system, automatic temperature control range can be set, which ensures the best performance of sealant.
(5) Equipped with 15L pouring can, alternate recycled using, simple and fast.
(6) High practicality: the sealant flow and armrest height can be adjusted to fit different operation conditions.
(7) Reliable performance: adopts imported burner, quick temperature rise,high efficiency,low failure rate, long service life
C. Safe and Environment-friendly
(8) Enclosed medium conduction heating system, well-distributed heating, High thermal efficiency,safe operation.
(9)Mixing at fixed quantity overhead, Overload automatic separation, With fire door peep hole and sealant mixing bar to avoid blocking.
(10) Sealant are melt evenly, homogeneous, without cracking and ageing, no discharge of dust and harmful gas

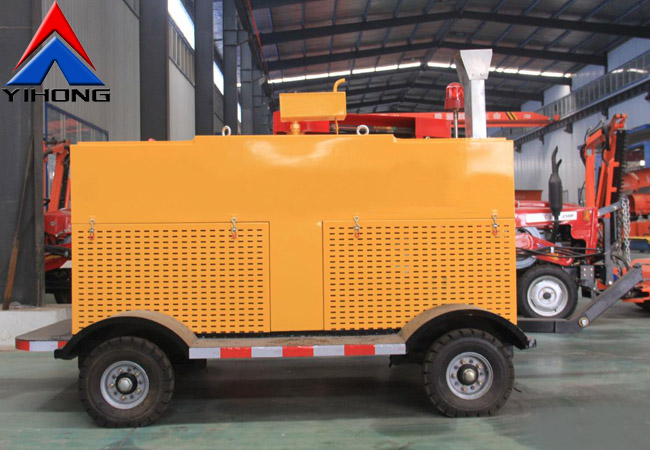

Crack Sealing Machine
|
Overall Dimension(mm) |
（2738+435）x1860x（1670+365） |
Burner Power（optional）（kw） |
28～60 |
|
Kettle Volume(L） |
400 |
Best Temperature for Sealant（℃） |
160～180 |
|
Preheater Volume（L） |
50 |
Rated Fuel Consumption（L/h） |
5.5 |
|
Conduction Oil Volume（L） |
110 |
Temperature Drop Index（℃/h） |
10 |
|
Curb Weight（kg） |
1638 |
time of warming 400L pouring sealant upto 180℃（min） |
≤60 |
|
Heating Type |
diesel |
Continuous Melting Capacity（L/h） |
≥1000 |
|
Heat Preservation Type |
automatic temperature control |
Forward Speed（trailer）（Km/h） |
≤10 |
|
Engine Power（kw） |
≥5.7 |
Fuel Type |
diesel |
