Road Sweeper   YHD22

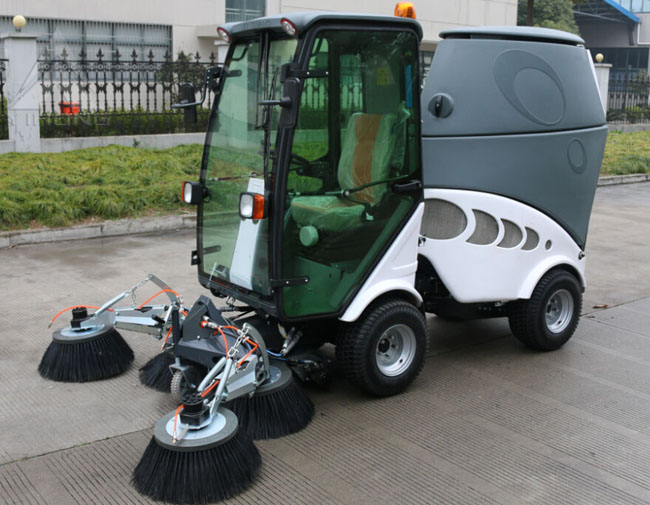

Road Sweeper YHD22

Applications :
City road cleaning Factory daily cleaning Footpath, shopping mall cleaning Parking lots cleaning College, school cleaning etc.
send e-mail info@yhroad.com
  • Overview
  • Features
  • Specifications

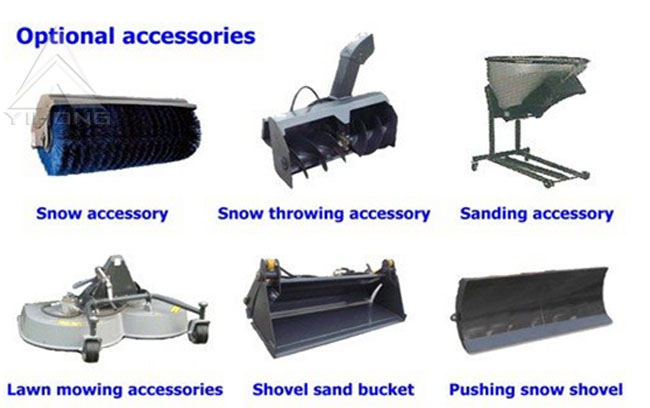

  • This sweeper is an outdoor multifunctional special equipment that equipped with a full set of special attachments, outdoor work can be completed without interruption throughout the year, spring and autumn for cleaning and vacuuming, summer used to mow the lawn, pruning, winter can be used to sweepsnow, sprinkle salt,etc.At the front of the vehicle is equipped with a quick plugin, put on different attachments have different functions, domestic initiative and fill the gaps.
    This sweeper is an ergonomic designed outdoor multifunctional special equipment, large spacious cab, surrounded by wide vision, the entrance position low and wide, the wheel and seat areadjustable to accommodate different operators. Seat with suspension device, very comfortable. Joystick and all operating control accessories are placed in the best position to facilitate the operator to operate, and provide a safe and comfortable operating environment.


    Road Sweeper YHD22

    Model YHD22
    Engine Model Yanmar 3GNDA
    Rated Engine Power 22.8 kw
    Wheelbase 1350 mm
    Kerb Mass 1200 kg
    Max Total Mass 1800 kg
    Garbage Bin Volume 500 L
    Water Tank Volume 150 L
    Sweeping Speed 10 km/h
    Max Sweeping Width 2200 mm
    Max Speed 18 km/h
    Dimension(LxWxH) 2700x1100x2100 mm
  • One Set of Road Sweeper YHQS5050 Kit Exported to Malaysia
  • 2 Sets of Tractor Mounted Road Sweepers Exported to Tanzania
  • One Ride-on Floor Scrubber Exported to Australia
  • 2 Sets of YHD21 Road Sweepers Exported to Lagos,Nigeria
