Battery Sweeper YHB20
Applications
:

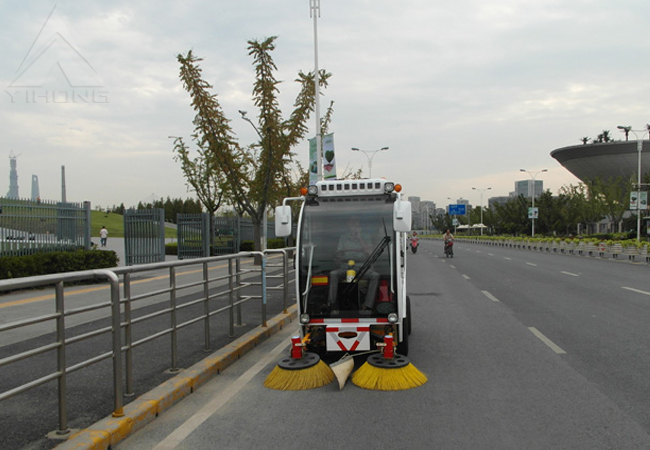

Small size, simple structure, high capacity recharge battery. Low exhaust and noise. Especially suitable for small and medium-sized road, non-motor vehicle driveways, large plaza, industrial parks, airports, scenic spot sweeps, pedestrian street and etc.
- Battery Sweeper YHB20
This battery sweeper YHB20 is designed with hydraulic control system, equipped with large capacity battery, low level noise and exhaust, There are panoramic glasses in cab, the field of vision is very open. with the help of water sprinkler device, it can avoid the secondary dust pollution very well. Especially suitable for small and medium-sized road, non-motor vehicle driveways, large plaza, industrial parks and etc.
- Battery Sweepers YHB20 Features:
1.Driven by recharge battery, No emission, Low level noise, No secondary pollution.
2.The special capacity battery only need be charged for 4-5 hours, then it can work for 8-12 hours.

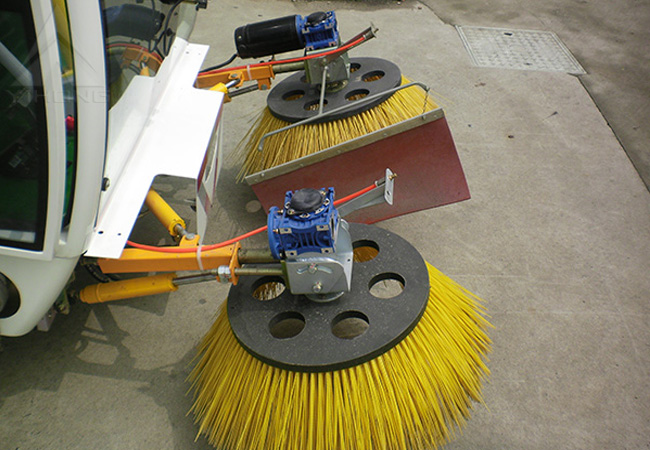

3.Strong sweeping system can clean away dust, leaves, cigarette end, drinking bottle and cobblestone.
4.For adopting with safe glass, it has broad horizon and safety.
5.Stable property, reliable, easy maintenance.
6.Humanization instruments and operation system makes the operation more easier and convenient.
7.More easier and flexible for garbage recycling, the user can replace the garbage bin very easy.
8.Equipped with spray and dust reduction device, so it can avoid raise dust and secondary pollution.

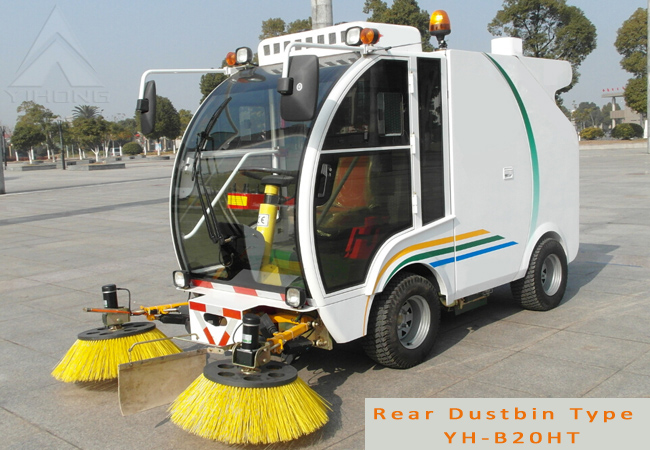

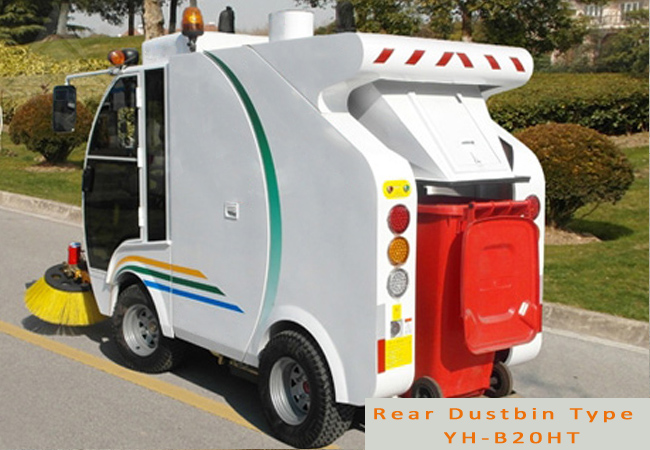

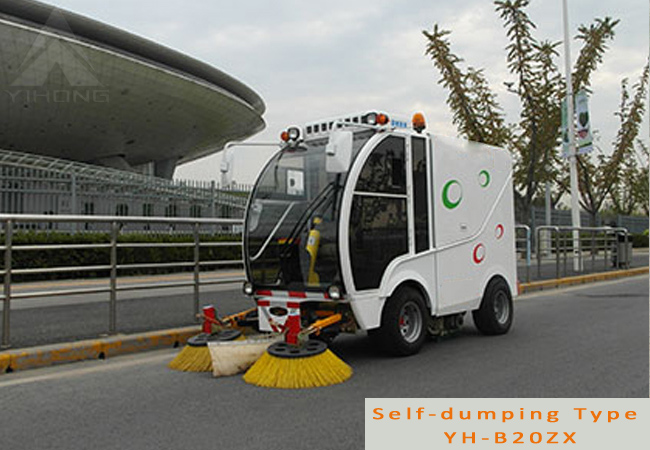

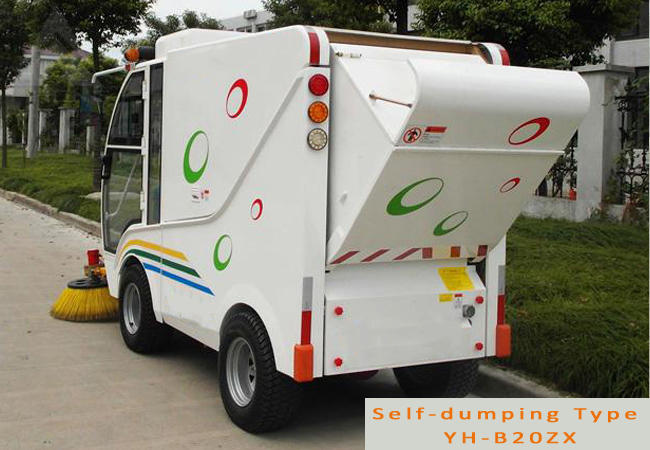

9. Two types: one is Rear Dustbin Type, the other is Self-dumping Type.
Battery Sweeper YHB20
|
Model |
YHB20-HT |
YHB20-ZX |
|
Power Type |
Battery-powered |
Battery-powered |
|
Overall Dimensions (L×W×H) |
3880×1280×2110 mm |
3700×1280×2100 mm |
|
Wheel Base |
1705 mm |
1665mm |
|
Wheel Track(Front/Rear) |
1052/1100 mm |
1052/1100 mm |
|
Minimum Turning Diameter |
4500 mm |
4500 mm |
|
Minimum Ground Clearance |
90 mm |
90 mm |
|
Gradeability |
≤20 % |
≤20 % |
|
Curb Mass |
1800 Kg |
1800 Kg |
|
Total Mass |
2300 Kg |
2300 Kg |
|
Sweeping Ability |
16000 m2/h |
16000 m2/h |
|
Sweeping Width |
2000 mm |
2000 mm |
|
Middle Brush Width |
840 mm |
840 mm |
|
Single Brush Width |
800 mm |
800 mm |
|
Garbage Bin Volume |
240 L |
450 L |
|
Water Tank Volume |
110 L |
110 L |
|
Drive Motor |
4 Kw |
4 Kw |
|
Battery Voltage |
48 V |
48 V |
|
Battery Capacity |
360 Ah |
360 Ah |
|
Charging Time |
5-6 H |
5-6 H |
|
Max.Operating Time |
12 H |
12 H |
|
Max.Operating Speed |
8 Km/h |
8 Km/h |
|
Max.Speed |
18 Km/h |
18 Km/h |
|
Noise at Max.Speed dB |
≤55 A |
≤55 A |
|
No.of Seats |
1 |
1 |
